Automotive/Heavy Industry Sector

Korea Container Pool (KCP) offers equipment rental services to domestic automobile companies and global automotive/heavy industry sectors, including KD and CKD.

KCP operates a pooling system of logistics equipment for various purposes in the automotive/heavy industry sector to enhance logistics efficiency. By transitioning from disposable to reusable packaging materials for CKD, cost savings in packaging materials, improved product protection, enhanced workability, and elimination of overseas logistics management are achieved.

항공ULD 이미지

CKD
Container
Pool System

KCP's CKD containers are designed as modular units that can be divided into 40 feet shipping container modules. This allows for △maximized cargo utilization, △reduced transportation costs, and △standardized operations.

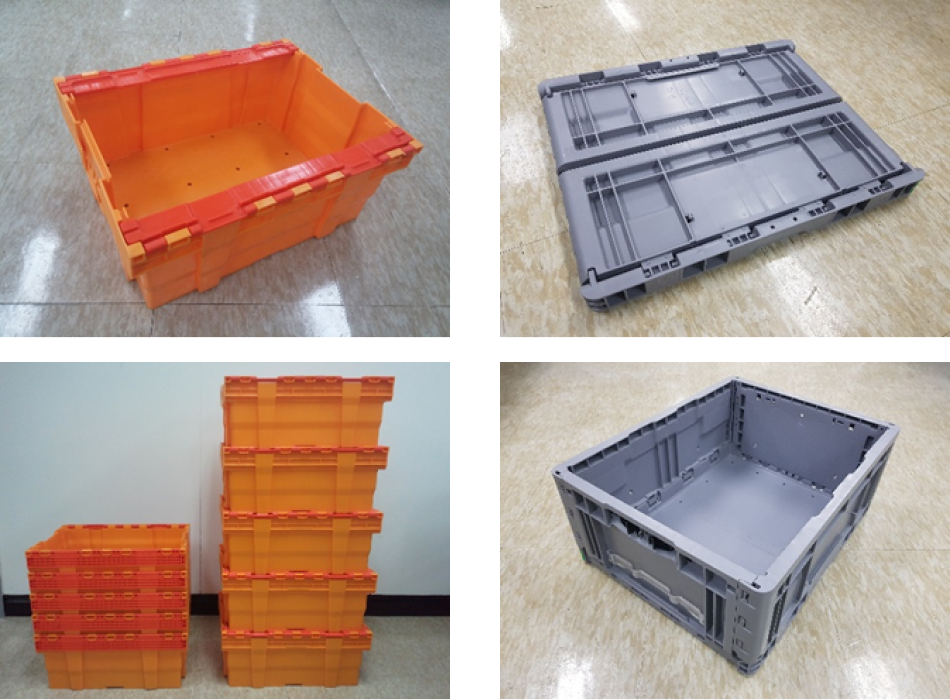

[Return Box - Plastic Product]

CODE Outer Dimension QTY /40ft Etc.
Length Width Height
NY 321
CA 321		 240 ㎜ 380 ㎜ 105 ㎜ 4,608 box 72 box/unit
NY 430
CA 430		 480 ㎜ 380 ㎜ 105 ㎜ 2,592 box 54 box/unit
NY 431
CA 431		 480 ㎜ 380 ㎜ 150 ㎜ 1,728 box 54 box/unit
NY 432
CA 432		 480 ㎜ 380 ㎜ 200 ㎜ 1,440 box 45 box/unit
CA 742 480 ㎜ 760 ㎜ 200 ㎜ 720 box 45 box/unit
NY 542 480 ㎜ 540 ㎜ 250 ㎜ 768 box 24 box/unit
NY 932 960 ㎜ 380 ㎜ 250 ㎜ 576 box 980*1140 pallet
SCB 00 1480 ㎜ 1140 ㎜ 110+50 ㎜ 32~64 unit Pallet Cap

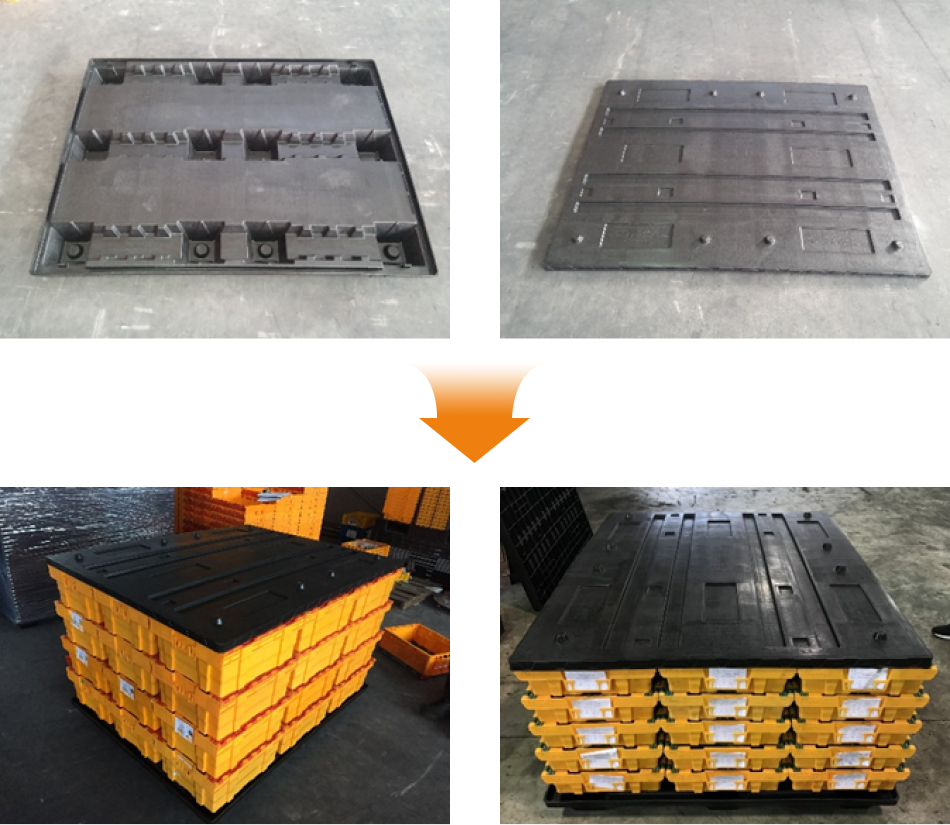

[Pallet + Cap Return Box for Loading]

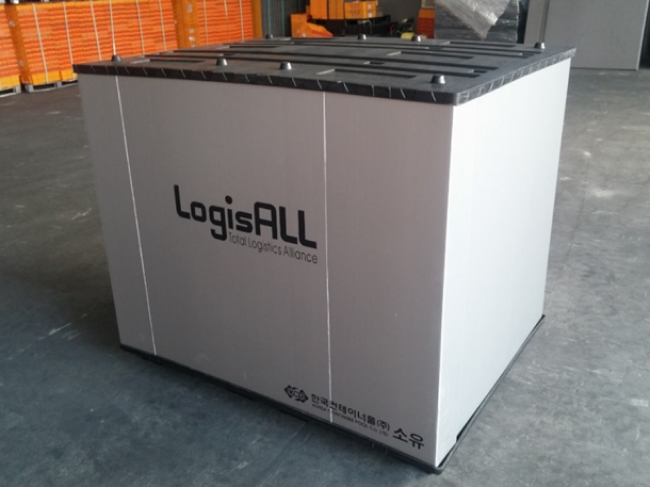

[SLEEVE CACE]

CODE Outer Dimension QTY /40ft Etc.
Length Width Height
SCB 05 1480 ㎜ 1140 ㎜ 550 ㎜ 64 unit 8×2×4

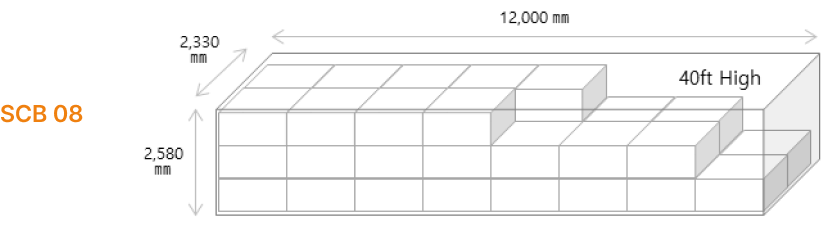

SCB 08 1480 ㎜ 1140 ㎜ 830 ㎜ 48 unit 8×2×3

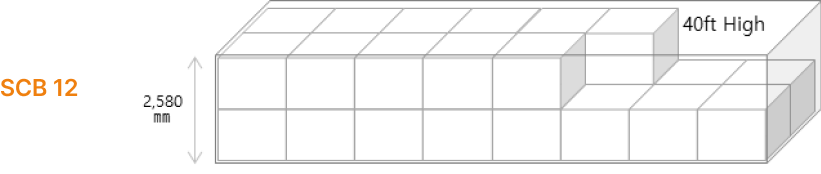

SCB 12 1480 ㎜ 1140 ㎜ 1250 ㎜ 32 unit 8×2×2

[SLEEVE CACE]

CODE Outer Dimension QTY /40ft Etc.
Length Width Height
STB 05 1480 ㎜ 1140 ㎜ 550 ㎜ 64 unit 8×2×4
STB 07 1480 ㎜ 1140 ㎜ 730 ㎜ 48 unit 8×2×3
STB 11 1480 ㎜ 1140 ㎜ 1100 ㎜ 32 unit 8×2×2

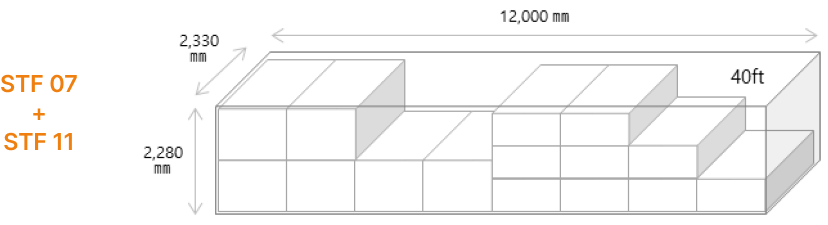

STF 07 1480 ㎜ 2260 ㎜ 730 ㎜ 24 unit 8×1×3
STF 11 1480 ㎜ 2260 ㎜ 1100 ㎜ 16 unit 8×1×2

HIP
Container
Pool System

Operation Process of MS Pool in the Heavy Industry Sector

[KCP MS Products for the Heavy Industry Sector]

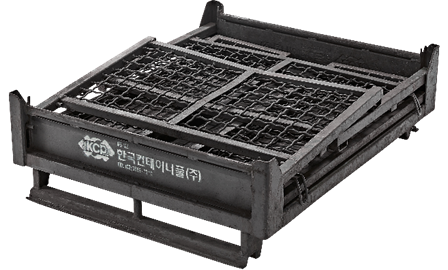

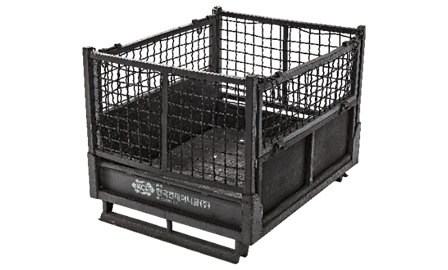

  • MS108

    1,000mm(L) * 800mm(W) * 750mm(H)

    1,000mm(L) * 800mm(W) * 300mm(H)

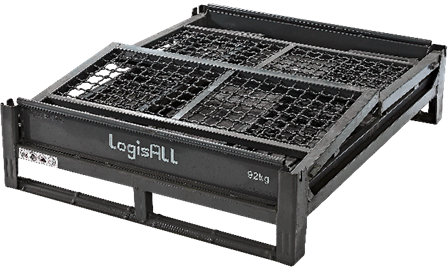

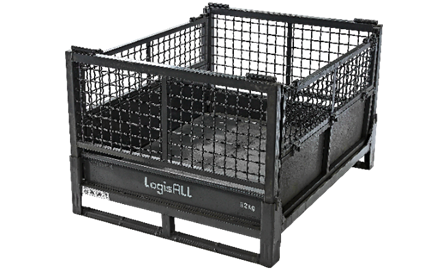

  • MS112

    1,200mm(L) * 1,000mm(W) * 750mm(H)

    1,200mm(L) * 1,000mm(W) * 300 mm(H)

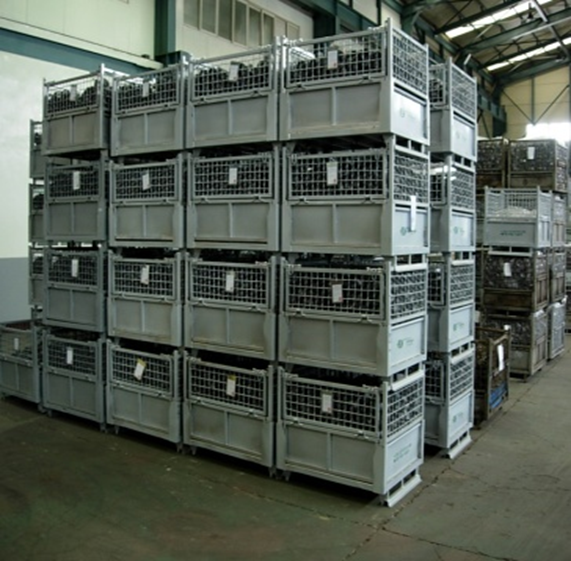

[Site Using KCP MS108 at a Domestic Forging Company]

- Typically stored in the factory with a loading capacity of 4-5 layers - Each pallet can accommodate approximately 600 to 1,000 kg of material per 1 P/L
