KCP supports stable ULD operations and management through ULD rental services

ULD stands for Unit Load Device, which refers to the containers and pallets used for loading cargo onto aircraft. These are specialized containers and pallets designed for the efficient and quick loading of large quantities of cargo onto airplanes. KCP supports global companies in achieving stable ULD management through the transition of existing ULD assets to rental services and the introduction of ULD rentals.

Link to LogisAll Aviation ULD

항공ULD 이미지

ULD
Management
System

Korea Container Pool provides expertise in ULD management through the LogisAll ULD HUB system.

Through ULD message-based data event processing and on-site-centric system design, we ensure effective ULD stock management, optimized ULD availability, and provide a solid foundation for reliable and continuous ULD information flow through LogisAll's innovative ULD HUB solutions.

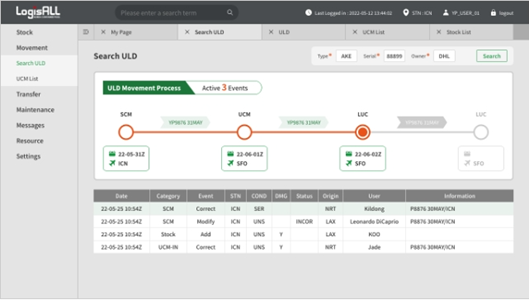

[LogisALL ULD HUB System]

ULD
Container

ULD 이미지

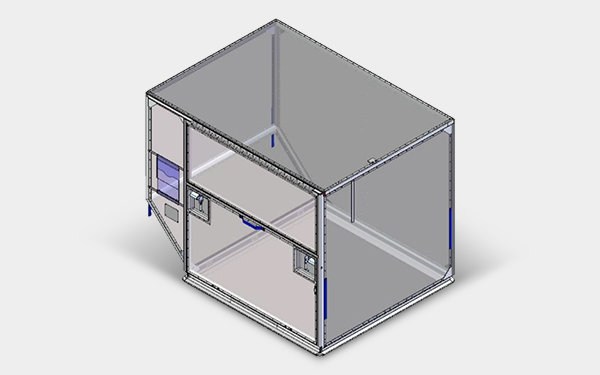

AKE / Metal Door
Tare Weight
177 lb / 80.6 kg ± 3%
Base Dimensions
60.4” x 61.5” / 1,534 x 1,562 mm
Height
64” / 1,626 mm
Roof Length
79” / 2,006 mm
Max Gross Weight
3,500 lb / 1,588 kg
Internal Volume
156 ft³ / 4.43 m³
Door Opening
55.5” x 60.1” / 1,410 x 1,528 mm
Door
Bi-fold Metal Door
ULD 이미지

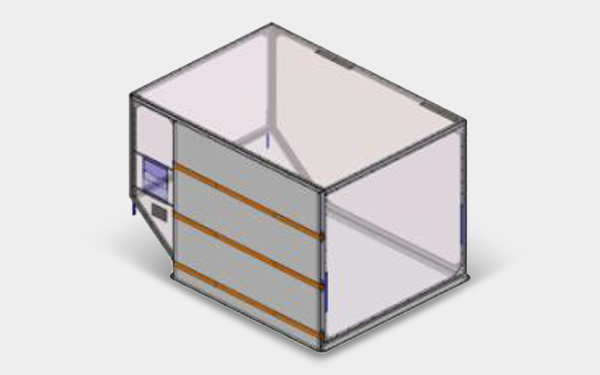

AKE / Canvas Door
Tare Weight
143 lb / 66 kg ± 3%
Base Dimensions
60.4” x 61.5” / 1,534 x 1,562 mm
Height
64” / 1,626 mm
Roof Length
79” / 2,006 mm
Max Gross Weight
3,500 lb / 1,588 kg
Internal Volume
156 ft³ / 4.43 m³
Door Opening
55.5” x 60.1” / 1,410 x 1,528 mm
Door
Blue Canvas Door with Velcro Strap
ULD 이미지

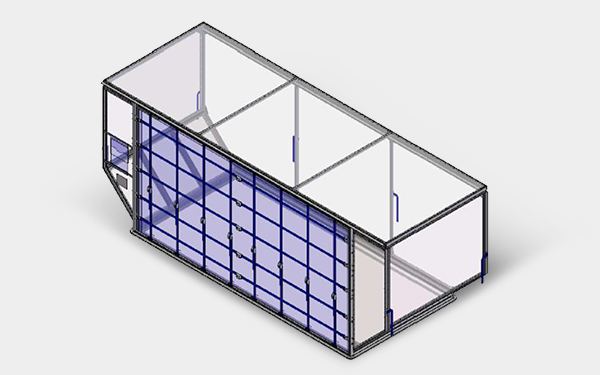

ALF
Tare Weight
374 lb / 170 kg ± 3%
Base Dimensions
60.4” x 125” / 1,534 x 3,175 mm
Height
64” / 1,626 mm
Roof Length
160” / 4,064 mm
Max Gross Weight
7,000 lb / 3,175 kg
Internal Volume
316 ft³ / 8.9 m³
Door Opening
119.5” x 60” / 3,035 x 1,525 mm
Door
Blue Canvas Door with Door Net

ULD
Pallet

ULD 이미지

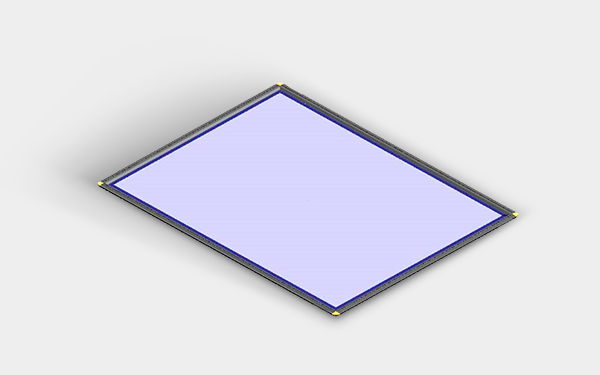

PMC
Tare Weight
209 lb / 95 kg
Dimensions
96” x 125” / 2,438 x 3,175 mm
Max Gross Weight
15,000 lb / 6,804 kg
ULD 이미지

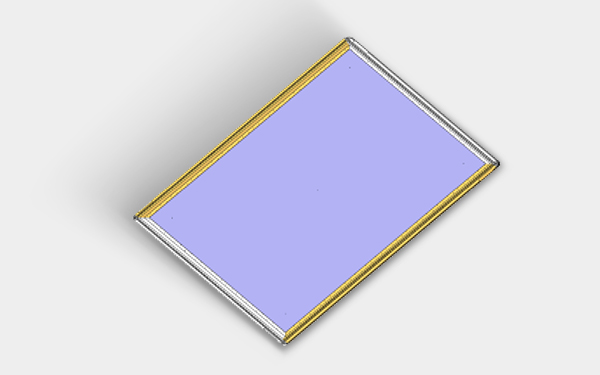

PAG
Tare Weight
214 lb / 97 kg
Dimensions
88” x 125” / 2,235 x 3,175 mm
Max Gross Weight
15,000 lb / 6,800 kg
ULD 이미지

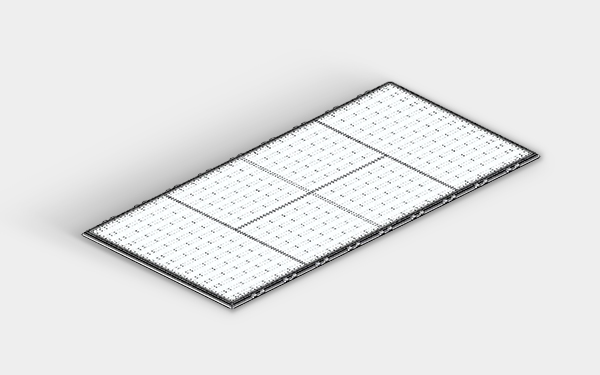

PGA
Tare Weight
1,112 lb / 505 kg ± 3%
Dimensions
96” x 238.5” / 2,438 x 6,058 mm
Max Gross Weight
30,000 lb / 13,608 kg
ULD 이미지
PRA
Tare Weight
904 lb / 410 kg ± 3%
Dimensions
96” x 196” / 2,438 x 4,938 mm
Max Gross Weight
25,000 lb / 11,340 kg
ULD 이미지
PLA
Tare Weight
196 lb / 89 kg
Dimensions
60.4” x 125” / 1,534 x 3,175 mm
Max Gross Weight
7,000 lb / 3,175 kg

ULD Cool
Container

ULD 이미지
RKN
Ext. Dim. (LxWxH)
79 x 60 x 64inch / 1,534 x 1,562 x 1,621mm
Int. Dim. (LxWxH)
50 x 48 x 49inch / 1,278 x 1,227 x 1,244mm
Tare Weight
327 kgw / 720 lbs
M.G.W.
1,589 kgw / 3,500 lbs
Dry Ice Capacity
150kgw / 330 lbs
Temp. Tolerance
±3˚C / ±5.4˚F
Temp. Operation Range
-20˚C to +5˚C (-4˚F to 41˚F)
Cooling Hours
72 hrs / set -20˚C@ Amb. 25˚C
Battery
8pcs x D1 Alkaline Batteries
Temp. Sensors
2@insdie 1@outside
Embedded Data Logger
Yes (USB Interface)
Temperature control is only available for dropping temperature below, not above, external temperature.
